F4J16 Gasoline Engine

F4J16 Gasoline Engine

Product Description

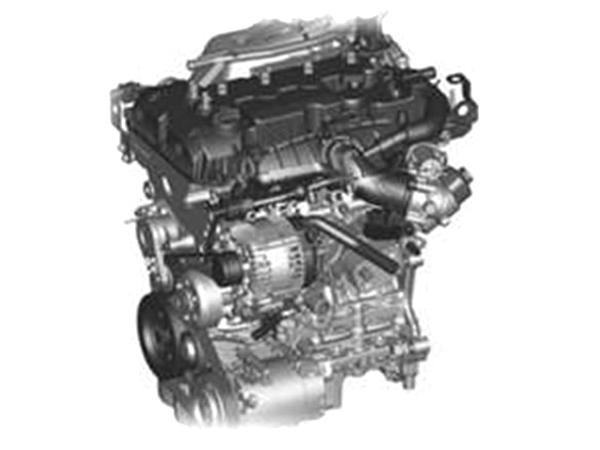

The F4J16 petrol engine is also a inline four engine developed by CHERY ACTECO. Its displacement is 1.6L. Similar with the F4J14 type, this petrol motor is designed with DOHC and 16 valves and features GDI, TCI and VVT technologies. Matched applications are passenger vehicles and generating sets.

Technical Parameters of F3J12 Petrol Engine
Code F4J16
Model 1.6L TGDI
Fuel Gasoline
Type 4-cylinder straight (inline), double overhead camshaft, 16-valve, turbocharged intercooled, VVT, in-cylinder direct injection
Displacement(L) 1.598
Bore×Stroke(mm) 77x85.8
Compression Ratio 9.9
Rated Power(kW@r/min) 140/5500
Max.Torque(N.m@r/min) 275/2500-4000
Specific Power(kW/L) 87.5
Overall Dimension L×W×H(mm) 605×632×652
Weight(kg) 130
Emission CN6,BJ6,EU6c
Transmission MT,CVT,DCT
Application Passenger cars, SUV, MPV
