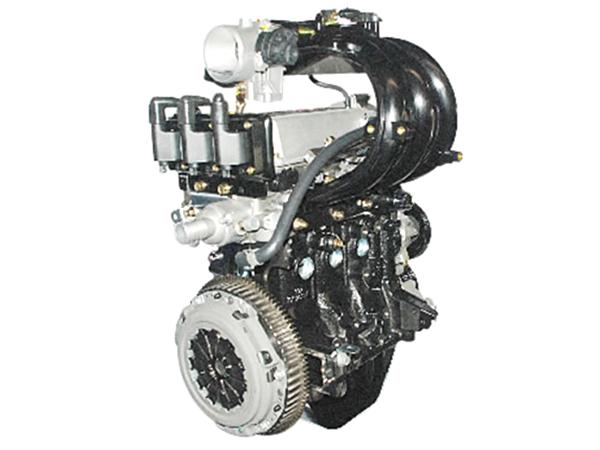

SQR372 Gasoline Engine

0.8L displacement, naturally aspirated engine (NA)
Inline 3-cylinder (type L3), double overhead camshaft (DOHC), 12 valves, 0.8L displacement, Naturally aspirated engine (NA)

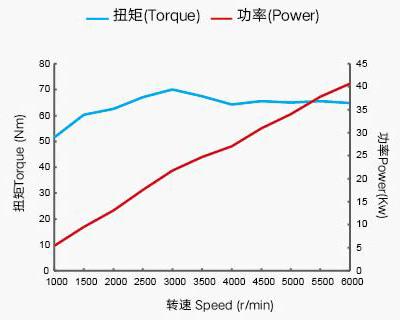

External Characteristic Curve

SQR372 0.8L NA Gasoline Engine parameters

Code	SQR372
Displacement (L)	0.812
Bore x Stroke (mm)	72x66.5
Compression Ratio	9.5
Rated Power (kW@r/min)	38/6000 (51.7ps)
Max Torque (N.m@r/min)	70/3500~4000
Specific Power (kW/L)	46.8
Overall Dimension (mm)	480 x 443 x 699
Weight (kg)	76
Emission	Euro IV

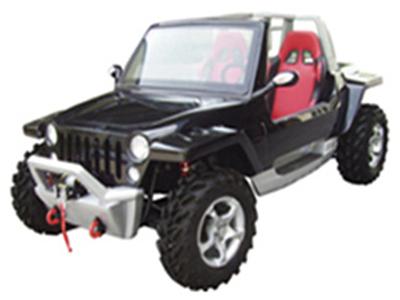

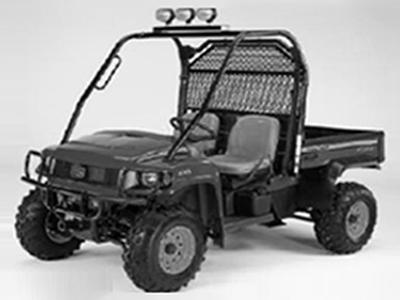

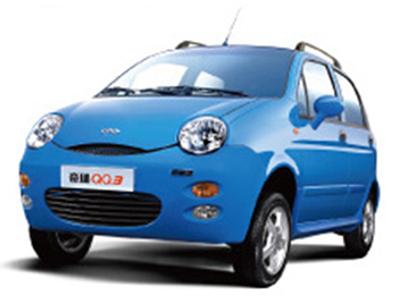

SQR372 gasoline engine is quite suitable for ATV, UTV, minivan or mini-truck, mini-passenger vehicle, small-displacement passenger vehicle, diesel generator sets and etc.
