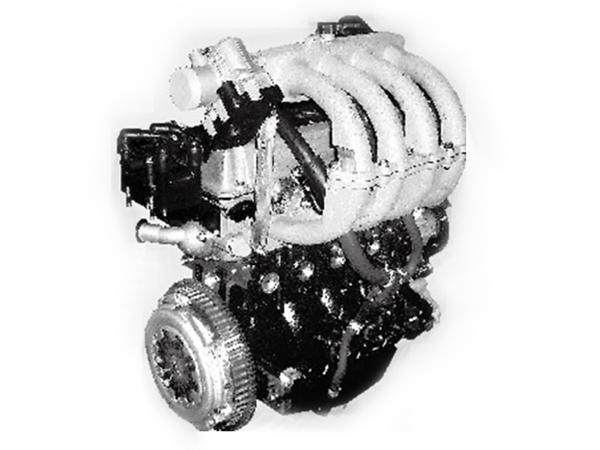

SQR472 Gasoline Engine

Naturally aspirated engine (NA), 1.1L displacement
Inline 4-cylinder (type L4), double overhead camshaft (DOHC), 16 valves

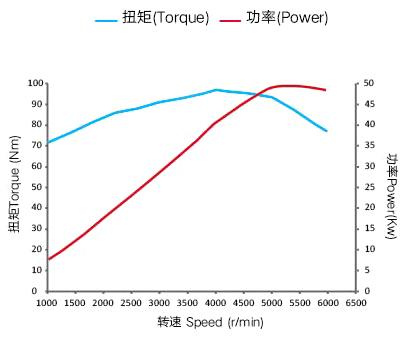

External Characteristic Curve

SQR472 1.1L NA gasoline engine parameters

Code	SQR472
Displacement (L)	1.083
Bore x Stroke (mm)	72x66.5
Compression Ratio	9.5
Rated Power (kW@r/min)	50/6000
Max Torque (N.m@r/min)	90/3500 〜4000
Specific Power (kW/L)	46.2
Overall Dimension (mm)	577x 443 x 685
Weight (kg)	80
Emission	Euro IV

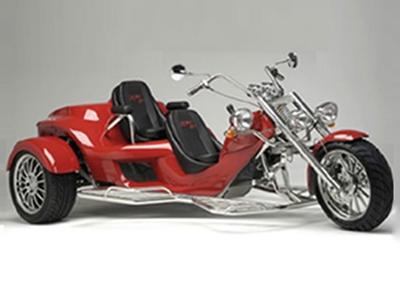

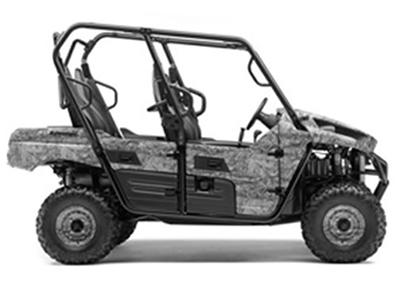

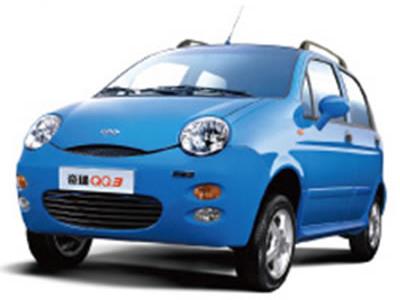

SQR472 gasoline engine is quite suitable for ATV, UTV, minivan or mini-truck, mini-passenger vehicle, small-displacement passenger vehicle, diesel generator sets and etc.
